Sizing basics, positioner behaviour, stiction and hysteresis testing, and separating valve problems from tuning problems

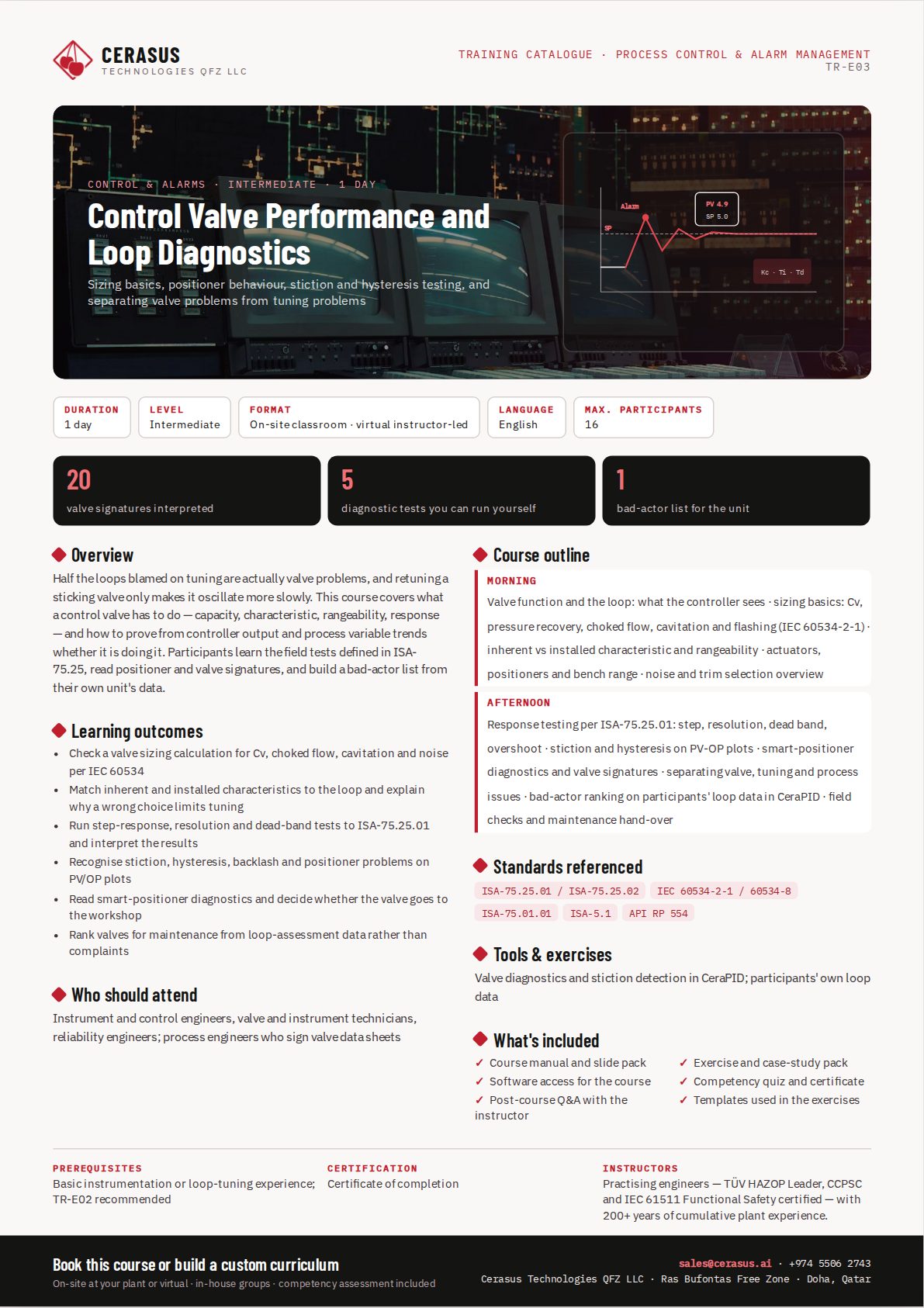

The flyer below is the printable A4 version. Use the buttons above to download it or the request form.
Instrument and control engineers, valve and instrument technicians, reliability engineers; process engineers who sign valve data sheets
Half the loops blamed on tuning are actually valve problems, and retuning a sticking valve only makes it oscillate more slowly. This course covers what a control valve has to do — capacity, characteristic, rangeability, response — and how to prove from controller output and process variable trends whether it is doing it. Participants learn the field tests defined in ISA-75.25, read positioner and valve signatures, and build a bad-actor list from their own unit's data.
Valve function and the loop: what the controller sees · sizing basics: Cv, pressure recovery, choked flow, cavitation and flashing (IEC 60534-2-1) · inherent vs installed characteristic and rangeability · actuators, positioners and bench range · noise and trim selection overview
Response testing per ISA-75.25.01: step, resolution, dead band, overshoot · stiction and hysteresis on PV-OP plots · smart-positioner diagnostics and valve signatures · separating valve, tuning and process issues · bad-actor ranking on participants' loop data in CeraPID · field checks and maintenance hand-over
ISA-75.25.01 / ISA-75.25.02IEC 60534-2-1 / 60534-8ISA-75.01.01ISA-5.1API RP 554Send a short brief — plant, service of interest and what you need to achieve — and a Cerasus engineer will respond with a proposed scope and next steps.
