CeraVent is a pressure-relief and venting analysis suite. It validates an installed PSV against changed conditions, designs a new PSV, or designs a rupture disc — as a step-by-step wizard that follows the current API standards and keeps every device in a shared relief register.
Relief calculations are unforgiving: the governing scenario, the relieving conditions, the physical properties, the orifice selection and the inlet/outlet piping checks all have to be right, and they all have to be traceable. CeraVent turns that into a guided workflow where each step shows the equation, the inputs and the standard clause behind it.
The suite covers three tasks — validate an existing PSV, design a new PSV, design a new rupture disc — and stores every case in a register with revision history, so a change to process conditions flags which devices need revalidation.
Fire, blocked outlet, control-valve failure, tube rupture, thermal expansion, utility failure and more per API 521, with relieving-condition calculation.
Gas/vapour, steam, liquid, two-phase (DIERS / Omega) and thermal-relief sizing per API 520 Part I; atmospheric-tank venting per API 2000.
3 % inlet-loss rule, built-up and superimposed back-pressure limits, bellows/pilot selection per API 520 Part II.
API 526 orifice letters and standard sizes; rupture-disc selection with combination capacity factors.
Open, attributed pure-component and mixture properties with EOS-based flash for relieving conditions.
Device inventory with case history, revalidation flags and server-side re-check of every stored result.
Validate an installed PSV, design a new PSV or design a rupture disc.
Select credible scenarios; the wizard computes relieving loads and conditions.
Orifice sizing and device selection with installation checks.
Store the case with calculation sheet, datasheet and revision.

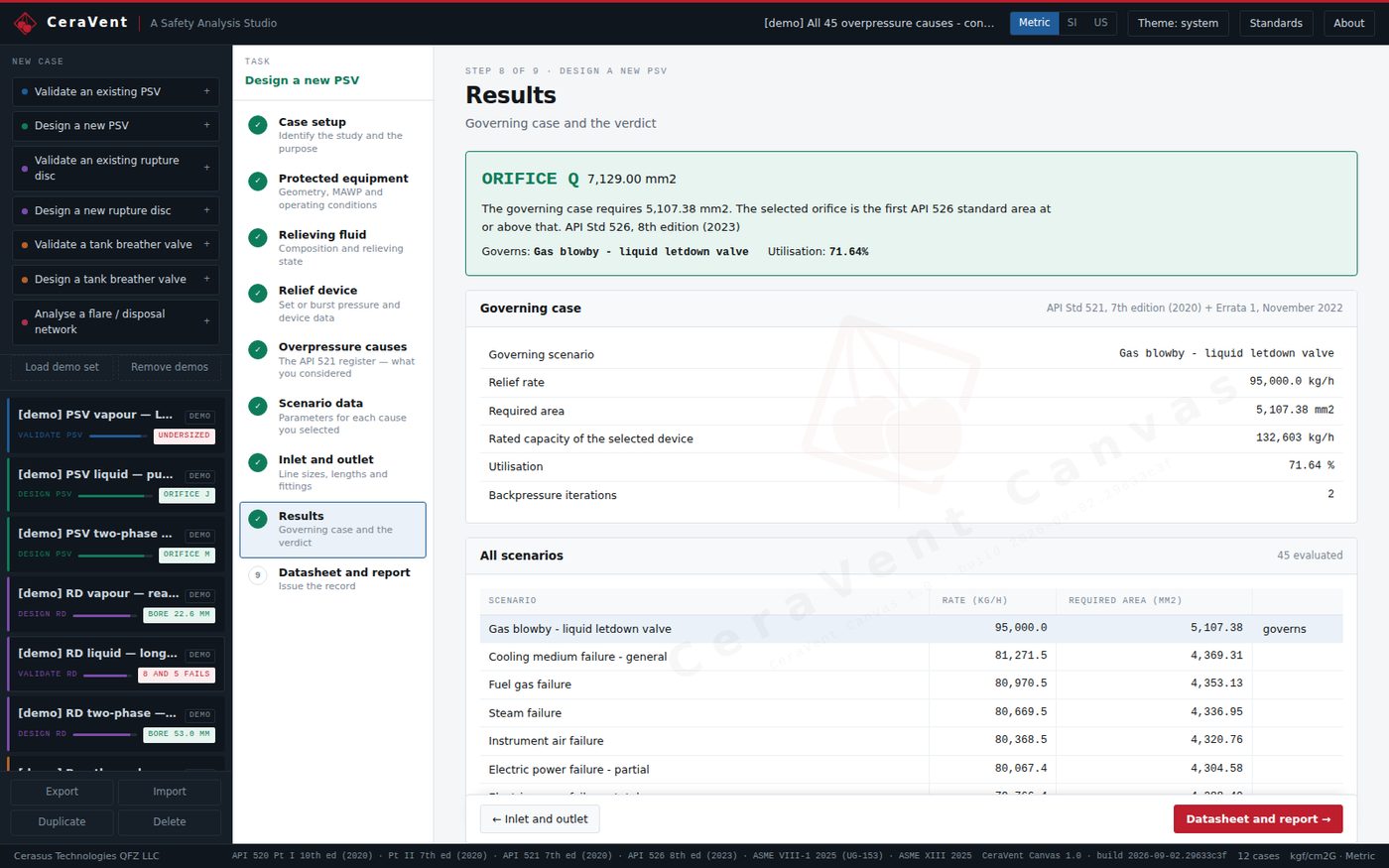

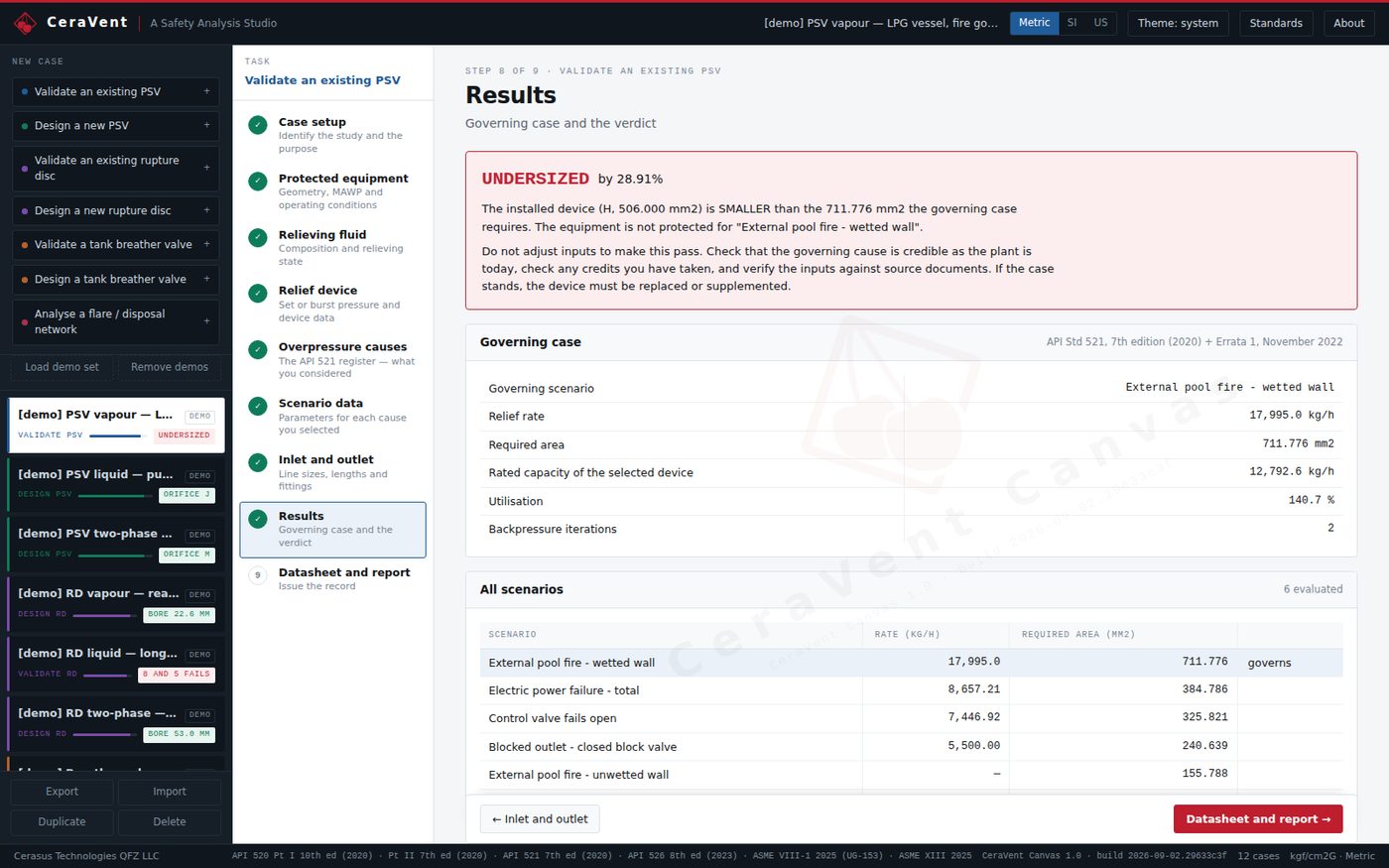

Screens from the current build. Click any image to open it full size.
API 520 Part I & IISizing, selection and installation of pressure-relieving devicesOSHA 29 CFR 1910.119(d)(3) & (j)PSM — relief system design basis and mechanical integrityAPI 521Pressure-relieving and depressuring systemsAPI 526Flanged steel pressure-relief valvesAPI 2000Venting of atmospheric and low-pressure storage tanksASME BPVC Section VIII Div. 1UG-125 to UG-140 overpressure protectionISO 4126Safety devices for protection against excessive pressureCCPS / DIERSTwo-phase and reactive relief methodsSend a short brief — plant, service of interest and what you need to achieve — and a Cerasus engineer will respond with a proposed scope and next steps.
