Zoning for gases, vapours and dusts and keeping the drawings alive

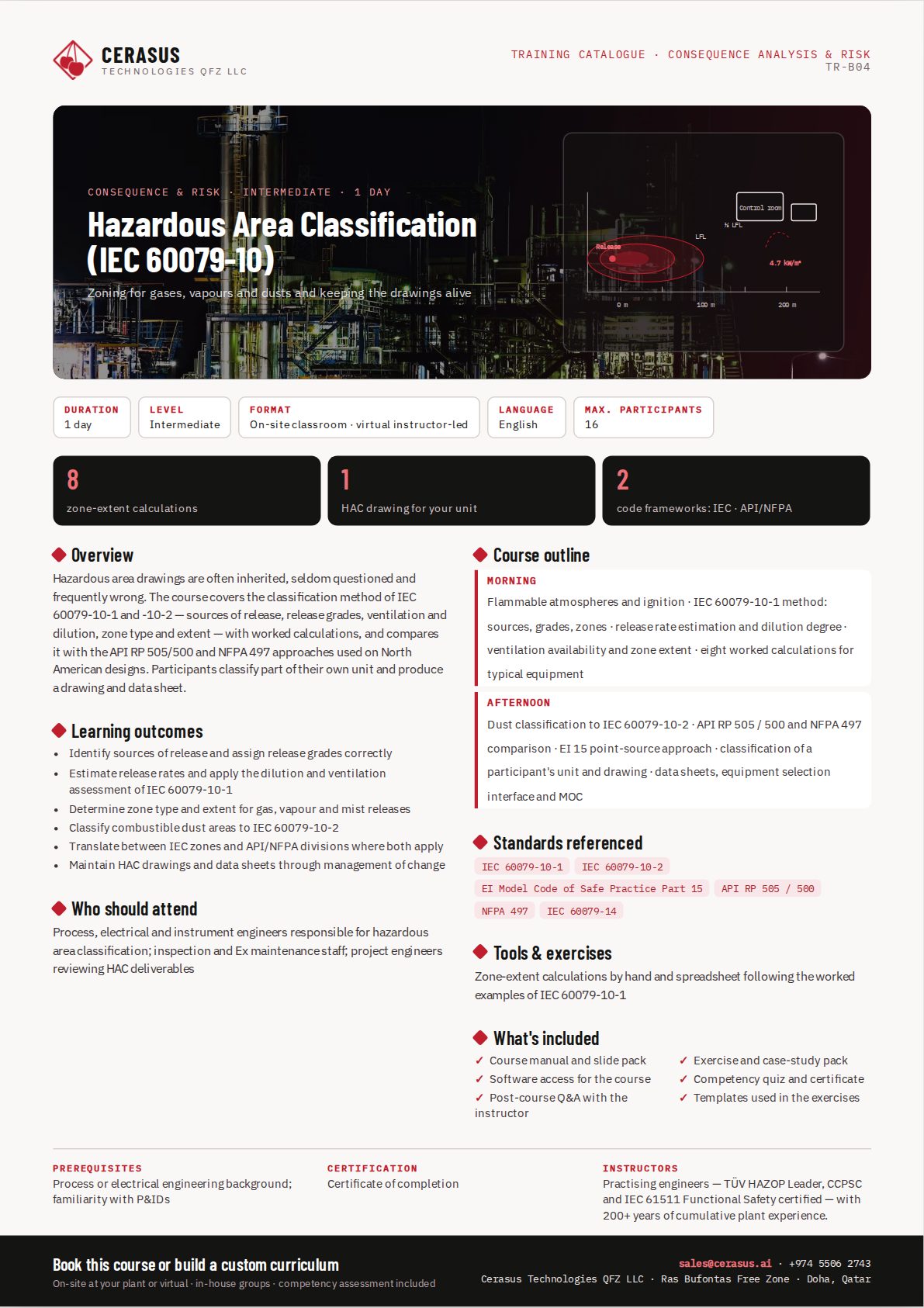

The flyer below is the printable A4 version. Use the buttons above to download it or the request form.
Process, electrical and instrument engineers responsible for hazardous area classification; inspection and Ex maintenance staff; project engineers reviewing HAC deliverables
Hazardous area drawings are often inherited, seldom questioned and frequently wrong. The course covers the classification method of IEC 60079-10-1 and -10-2 — sources of release, release grades, ventilation and dilution, zone type and extent — with worked calculations, and compares it with the API RP 505/500 and NFPA 497 approaches used on North American designs. Participants classify part of their own unit and produce a drawing and data sheet.
Flammable atmospheres and ignition · IEC 60079-10-1 method: sources, grades, zones · release rate estimation and dilution degree · ventilation availability and zone extent · eight worked calculations for typical equipment
Dust classification to IEC 60079-10-2 · API RP 505 / 500 and NFPA 497 comparison · EI 15 point-source approach · classification of a participant's unit and drawing · data sheets, equipment selection interface and MOC
IEC 60079-10-1IEC 60079-10-2EI Model Code of Safe Practice Part 15API RP 505 / 500NFPA 497IEC 60079-14Send a short brief — plant, service of interest and what you need to achieve — and a Cerasus engineer will respond with a proposed scope and next steps.
